AllMotion: Miniature Step and Direction Stepper Motor Driver EZINCH
EZ Inch步进驱动器的尺寸仅为25.4mm X 25.4mm ,旨在让用户创建微型运动控制解决方案。
该驱动器的输入为STEP,DIRECTION,POWER(9V-30V)和GROUND。 (不需要单独的5V电源)。 步进和方向输入接受5V TTL电平信号,或接受开关闭合接地。 请参阅接线图。
两个板载电位器设置MOVE和HOLD电流,当在STEP输入上检测到脉冲时,板载电子设备在两个电流设置之间自动切换。驱动电流高达1安培。
特征

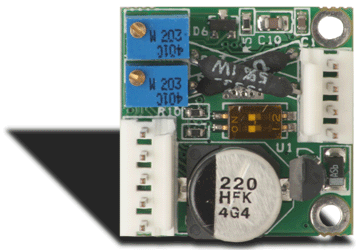

Measuring just 1" X 1" , the EZ Inch Stepper Driver was designed to allow users to create miniature motion control solutions.
The inputs to this drive are STEP, DIRECTION, POWER (9V-30V) and GROUND. (There is no requirement for separate 5V power). The step and direction inputs accept 5V TTL level signals, or can accept switch closures to ground. Please see the Wiring Diagram.
Two on board potentiometers set the MOVE and HOLD currents, and the on board electronics automatically switch between the two current settings when pulses are detected on the STEP input.
The drive current is up to 1 Amp.
4 Wire input STEP, DIRECTION, GROUND, POWER
1 Amp Chopper (PWM) Stepper Driver
MilliOhm FETs allow board to run cool at 100% current
Operates from 12V to 30V
1" X 1" X 05" Thick
Eighth, Quarter, Half, or Full Step - Dip Switch Selectable
1/16th microstep resolution special option available
Hold and Move current settable with Potentiometers
Move current automatically selected when step input is active
Hold current automatically selected upon move completion
Accepts 24V or TTL Level Inputs
Up to 25000 pulses per second
RoHS compliant
